Product description.

Intelligent radar test, inspection and maintenance system, combined with the development trend of intelligent, miniaturized, comprehensive and integrated test equipment, integrates radar test technology with information technology, integrates signal source, spectrum measurement, power measurement, waveform measurement, noise source, digital multimeter and other modules, and realizes radar one-key automatic test through intelligent test software. It can be widely used in all kinds of weather radar, military and civil radar performance parameter testing and auxiliary fault diagnosis.

Key Features.

● With signal source, power meter, spectrum analyzer, oscilloscope, digital multimeter and other general-purpose instrumentation functions, test accuracy to reach the level of mainstream desktop instrumentation.

● According to the requirements of the radar and the main parameters of each sub-system can be automatically tested by one key, to meet the weekly, monthly, annual maintenance and inspection test needs.

● It can bind test sequences, guide users to complete one-key automatic testing, test data retention, data query and statistical analysis, automatic export of data and images, automatic production of test reports.

● Provide fault diagnosis and localization function, according to the common faults to establish a database, complete the automatic fault guide, guide the security personnel to quickly locate the faults and carry out maintenance.

● With online detection and alarm function, convenient for on-site testing and maintenance.

● With automatic parameter calibration function, and automatically save the calibration data to improve the testing accuracy.

Product Features.

Modular, integrated design, easy to upgrade and expand.

Small size, light weight, easy to carry.

Multi-functional design, easy to operate, can realize one-key test.

Measurable items.

Echo intensity, velocity.

Transmitter preamp input power, pulse width, spectrum, limit improvement factor, etc.;

Transmitter final stage output power, pulse width, spectrum, limit improvement factor, etc.;

Receiver dynamic range, sensitivity, noise figure, amplitude-phase coherence of the receiving channel, etc.;

Routine maintenance tests: waveform, spectrum, power, voltage, current, impedance and other tests.

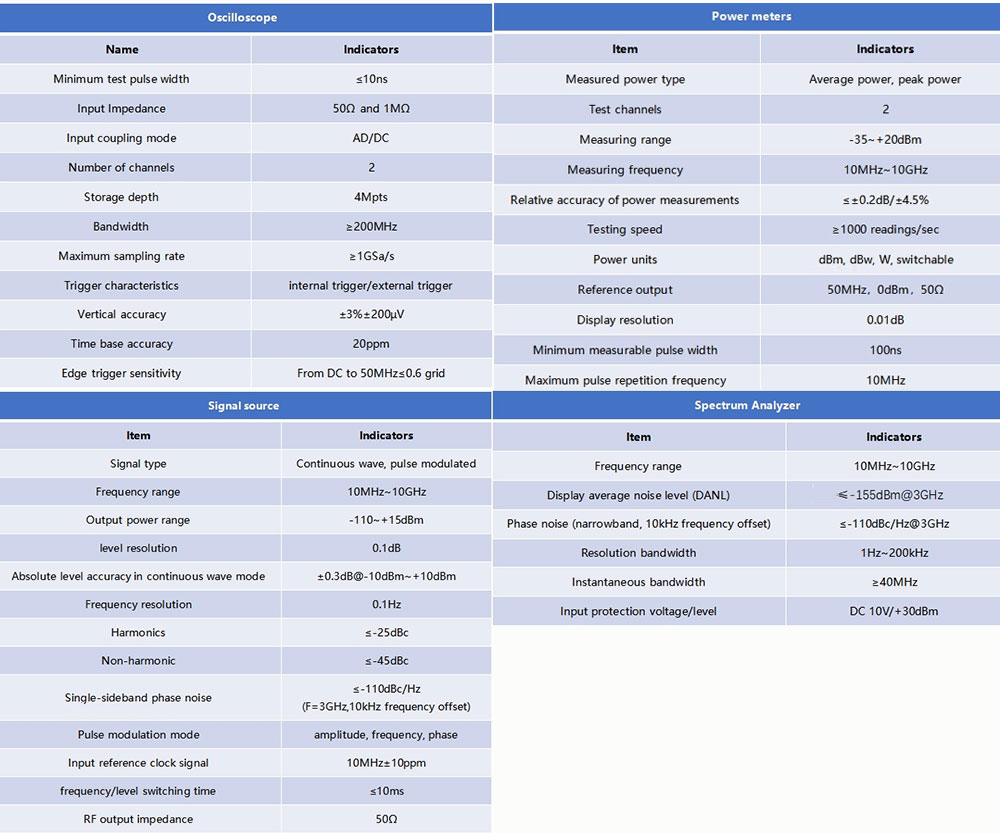

Technical specifications
